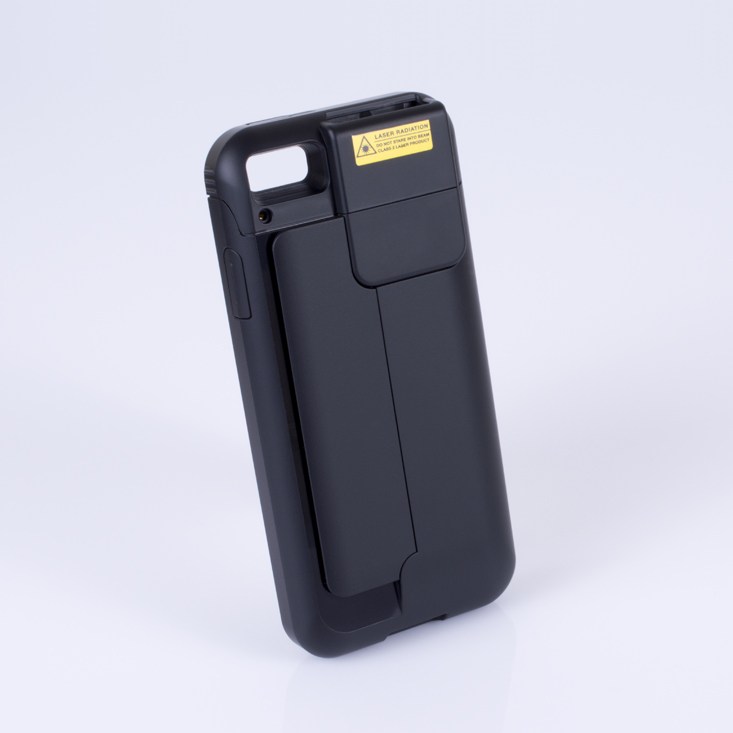

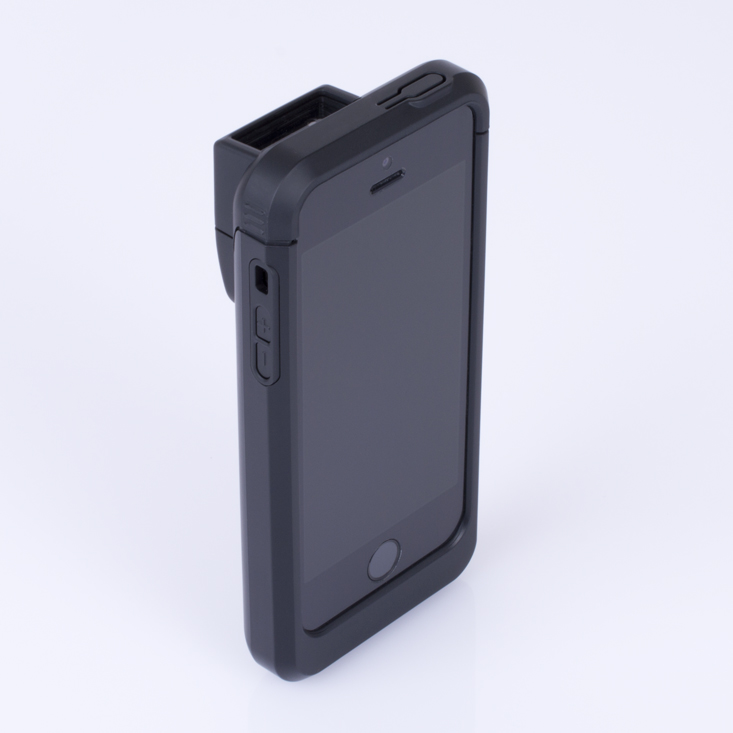

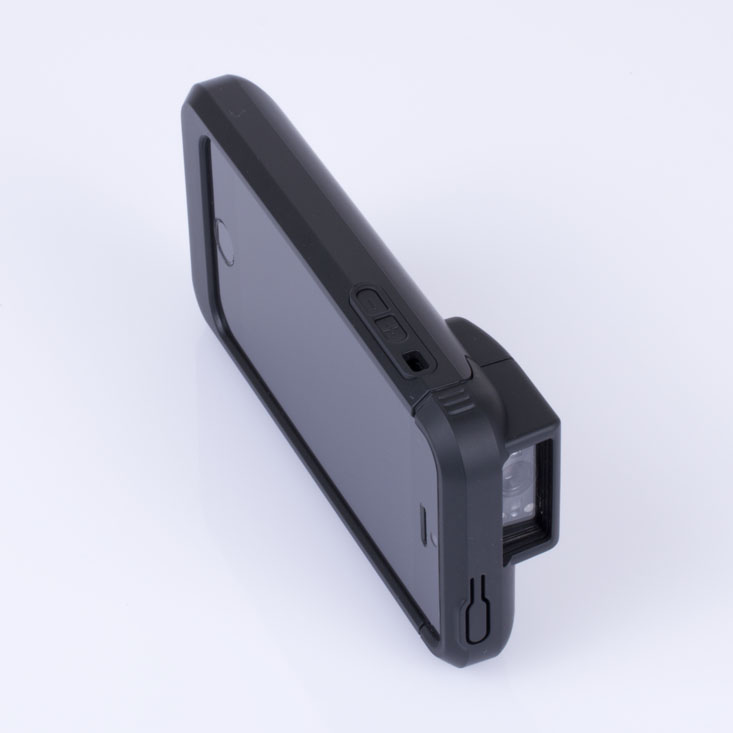

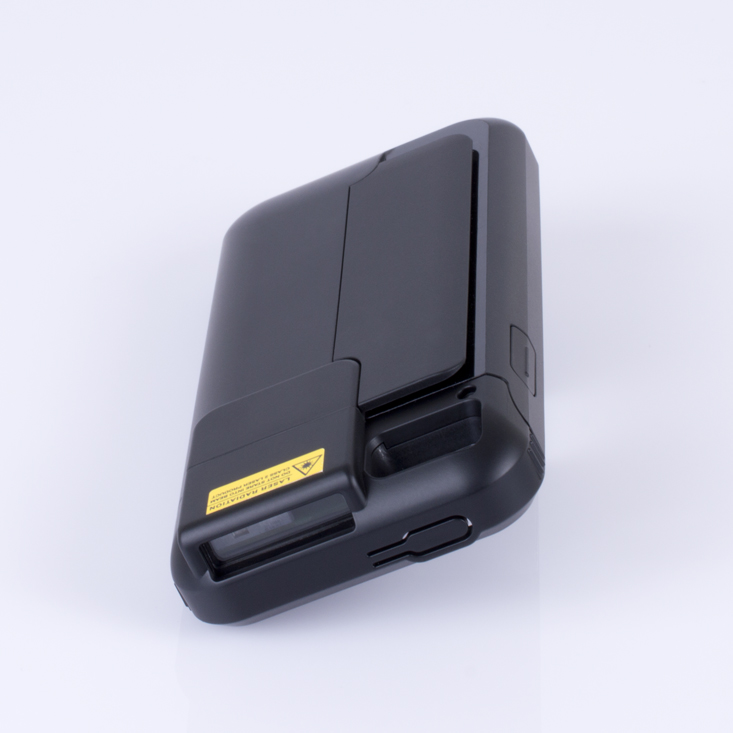

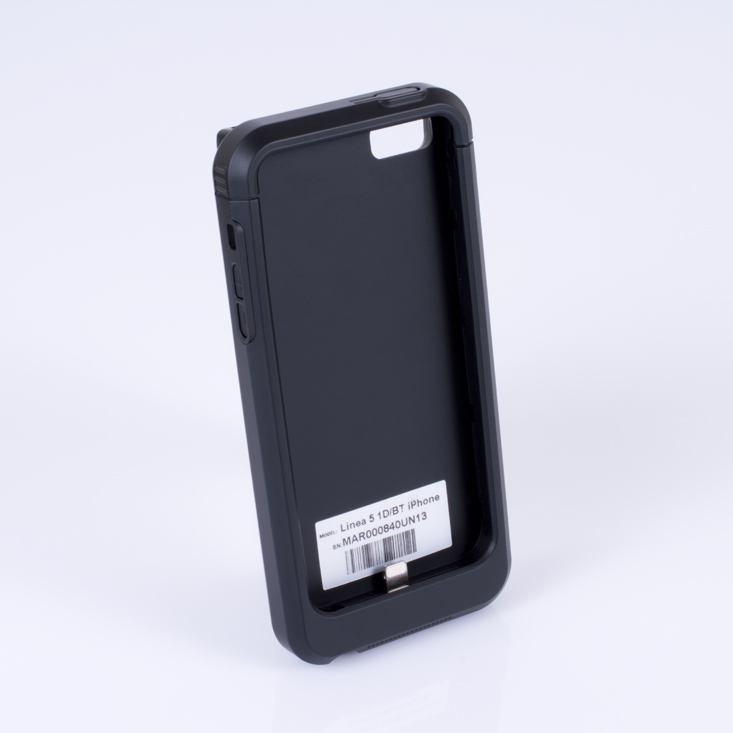

LineaPro 5
LineaPro 5 allows mobile workers to convert their iPod® or iPhone® into a powerful point of sale solution.
The LineaPro 5 includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery.
Technische Leistungsmerkmale
- Compatible Accessories
- Single charger (GT1)
5 stations charger (GT5)
Holsters
Pistol Grip - Storage temperature range
- -20 °C to +50 °C / 5 to 90% RH
- Weight
- 120 g with battery and 2D barcode reader (without iPod 5 / iPhone 5)
- Certificates
- CE, FCC, PCI PTS 3.x (when Secure Magnetic Card Reader is installed), Apple® Mfi
- Battery
- Rechargeable Li-Ion Battery 3.7V / 1300 mAh
- Audio Features
- Electro-Magnetic Buzzer
- Device Compatibility
- iPod 5, iPhone 5, iPhone 5S
- Supported 1D and 2D Symbology
- Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,
GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code - Supported Symbology 1D
- JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
Composite codes, MicroPDF417, PDF417 - Contactless Card Reader
- (optional) supports:
MiFARE Mini MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO 14443 A&B
ISO 15693
DESFire
FeliCa - Magnetic Card Reader
- Triple track bi-directional
- Drop Tested
- 1.5 m, 6 faces + 4 edges on concrete
- Operational temperature range
- -10 °C to +40 °C / 5 to 90% RH
- Dimension W x D x H
- 69 x 142 x 22 mm with 1D barcode reader
69 x 142 x 27 mm with 2D barcode reader - Reliability
- 1 000 000 magnetic card swipes
- Power Supply
- DC 5V through mini USB
DC 5V through Single or 5 Stations charger - LED Indication
- 4 LEDs for battery status
- Connectivity
- Apple 9 pin connector
Pass-through sync through mini USB BT 2.0 Class 2 (option) – SPP – Serial Port Profile - 2D Barcode Reader
- Newland EM3090 – 752 x 480 CMOS (optional)
Intermec EA30 – 752 x 480 CMOS (optional)
Honeywell N3680 – 640 x 480 CMOS (optional)
Honeywell N4680 – 640 x 480 Global Shutter (optional)
Honeywell N5780 – 1280 x 800 Global Shutter (optional) - 1D Barcode Reader
- Opticon MDL1000* – Laser Barcode Scan Engine (optional)
- Encrypting Magnetic Card Reader
- Triple track bi-directional (optional)
AES-256, DUKPT for AES-128 and 3DES - Keyboard and Buttons
- Scan button
Battery status button
